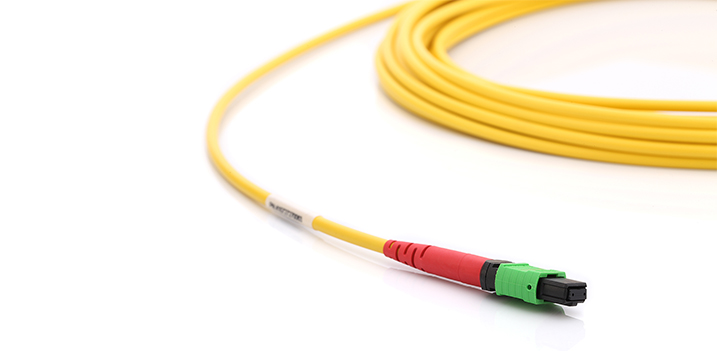

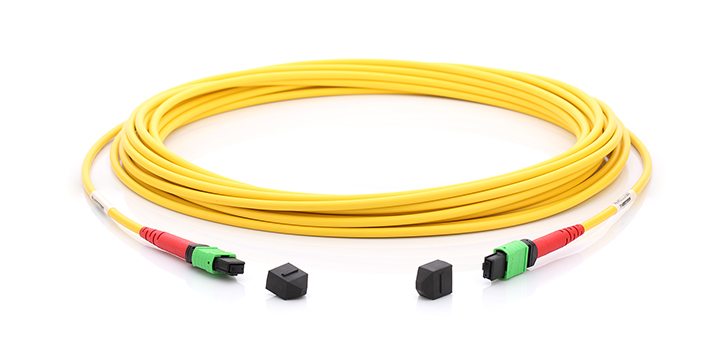

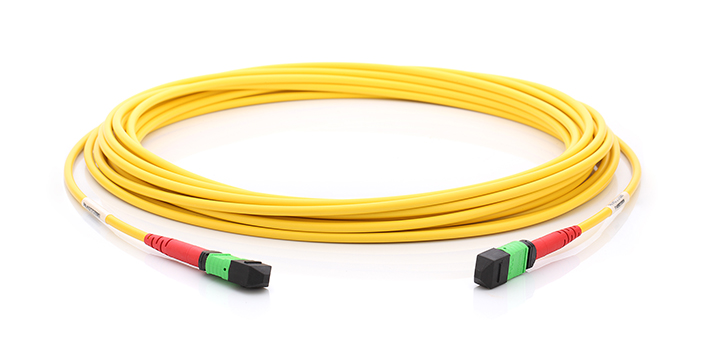

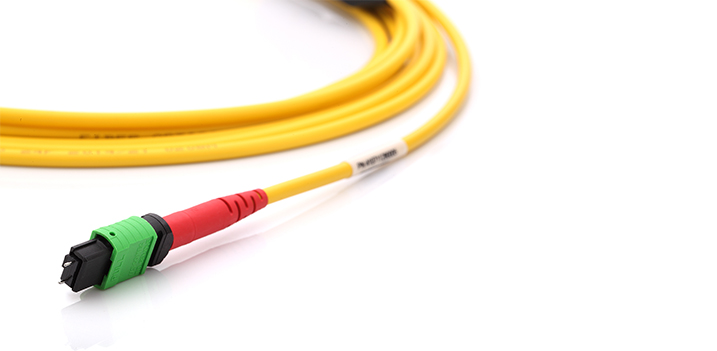

Single Mode Fiber Products
100% pre-terminated and tested in factory to ensure the performance
Rapid configuration and networking, reduce installation time
Optical fiber type: OS1, OS2
Cable color: yellow(OS1,OS2 indoor),
Flammability: LSZH, OFNR available
Fibers: 8F, 12F;
Side A: 8F MTP/MPO(M or F); 12F MTP/MPO(M or F);
Side B: 8F MTP/MPO(M or F); 12F MTP/MPO(M or F);
Customized products are available
Supports 4x10G BASE-LR network applications
Supports 100G PSM4 network applications
MDA, HAD, EDA connection in data center and carrier central office
In the rack and cabinet
Between the racks and cabinets

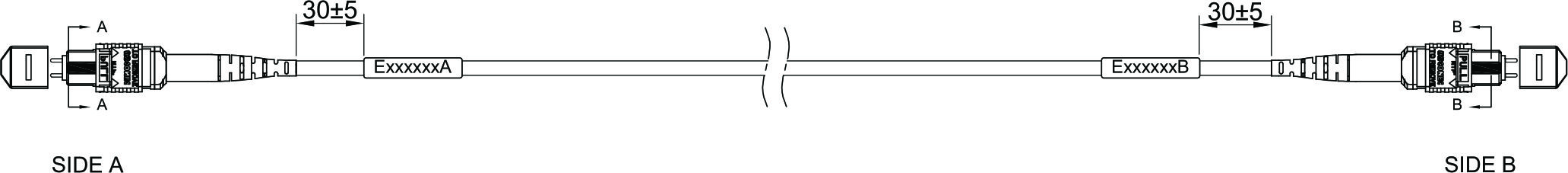

EPC12M12M012S1LZxxxxFSB

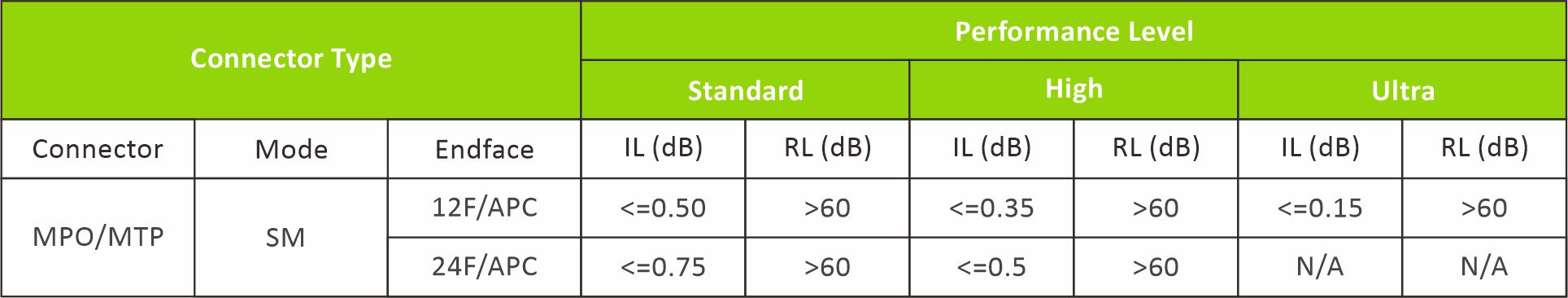

Optical Performance
Note:
1.Test wavelength: SM@1310/1550nm;
2.Test method: compliant with IEC 61300-3-4 method B;
3.Standard conformance: GR-1435.

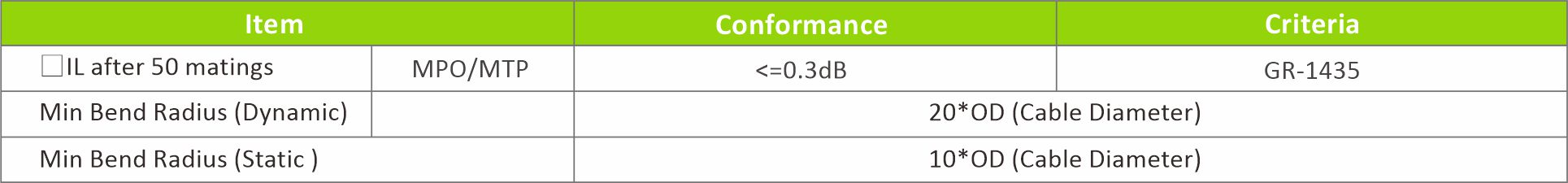

Mechanical Properties

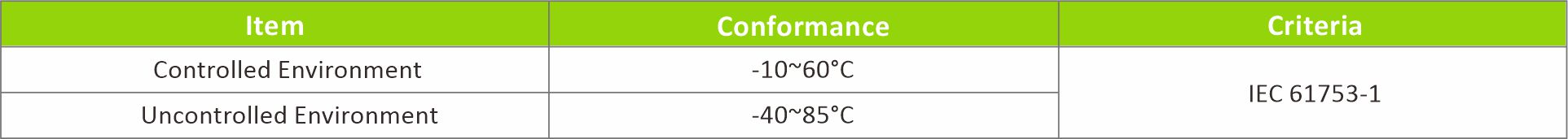

Environment Conditions
