CWDM/FR

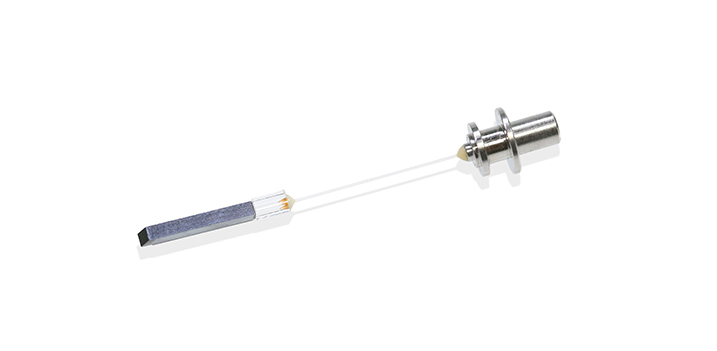

Receptacle-Capillary+AWG
SM Optical Subassembly
100G/200G CWDM4/FR4
Feature
Realize optical waveiength Demux to 1271nm, 1291nm, 1311nm, 1331nm.
Receptacle part and product length can be customized for transceiver design.
41° AWG chip for changing light direction to coupling with PD.
Application
100G/200G CWDM4/FR4 transceiver.
Installation Location
Data Center
Technical Specification
| Items | Unit | Parameters |
| Operating Wavelength | nm | 1271 1291 1311 1330 |
| Optical Channels | - | 4 |
| Passband | nm | ±5.75 |
| 1dB Passband | nm | 12 |
| 3dB Passband | nm | 15 |
| Insertion Loss | dB | ≤2.0 |
| Return Loss | dB | ＞30 |
| Adj. Isolation | dB | ＞20 |
| Non Adj. Isolation | dB | ＞25 |
| PDL @Passband | dB | ＜0.5 |
| Pitch | um | 250 |
| Storage Temperature | ℃ | -40~85 |
| Reliability | - | Telcordia GR-1221 |
