DWDM/ZR

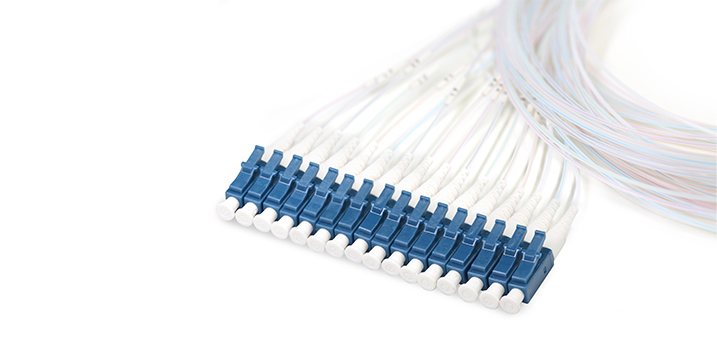

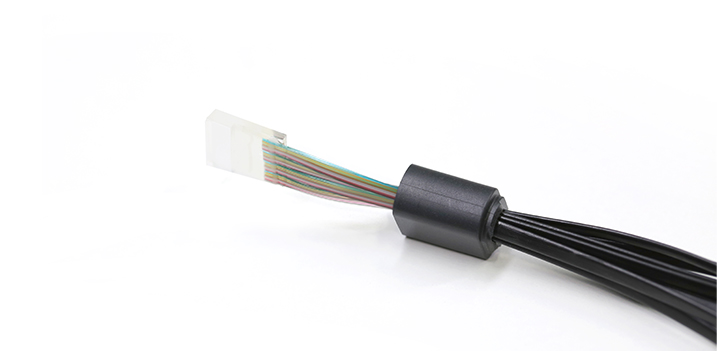

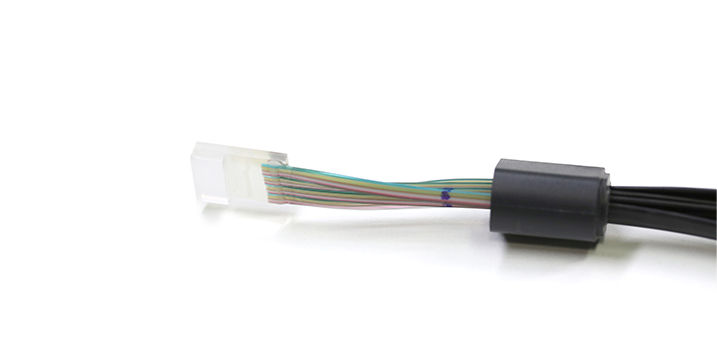

High CH FA-LC Fanout
SM Optical Subassembly
DWDM/WSS
Feature
Fiber type: G.657.A1 or customized.
Suitable FA end-face profile for coupling.
Customized products available.
High Reliability.
Application
DWDM/WSS
Installation Location
WSS-ROADM
Technical Specification
| Items | Parameters | |
| Channel Count | 40ch/48ch or Customized | |
| Pitch | 127um or Customized | |
| Core Pitch Tolerance | ±1.2um or Customized | |
| Fiber type | G.657.A1 or Customized | |
| VG/Cover Material | BF33 or Quartz | |
| Polish Angle | 8°±0.5° | |
| FA Insertion Loss(dB) | ≤0.15dB | |
| LC Insertion Loss(dB) | ≤0.20dB | |
| LC Return Loss(dB) | ≥55dB | |
| Working Temperature | -40℃~85℃ | |
| Storage Temperature | -40℃~85℃ | |
| FA Size | Customized | |
| Reliability | Telcordia GR-468, Telcordia GR-326 | |
