MMSR

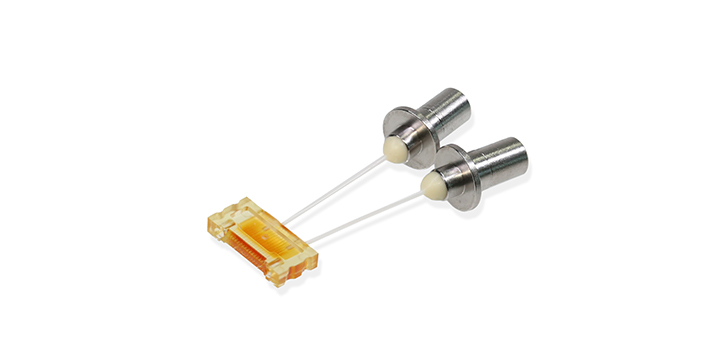

Jumper-Dual Receptacle
MM Optical Subassembly
100G SR1 Transceiver
Feature
Fiber type: OM2, OM3, OM4 or customized.
Ferrule can be customized to be suitable with lens.
Laser cleaving 0° or 8° angle on fiber end-face for coupling.
Application
100G SR1 transceiver
Installation Location
Data Center
Technical Specification
| Items | Parameters | |
| Channel Count | 2ch or 4ch or Customized | |
| Ferrule Type | Customized Jumper | |
| Fiber Length Tolerance | ±0.5mm | |
| Cable Diameter | 0.35mm or Customized | |
| Fiber type | OM3 or Customized | |
| Ferrule Material | PPS or PEI | |
| Laser Cleaving Angle | 0°±1°, 8°±1° or Customized | |
| Laser Cleaving Length Tolerance | 180±10um or Customized | |
| Receptacle Insertion Loss(dB) | ≤0.3dB | |
| Return Loss(dB) | ≥45dB | |
| Working Temperature | -40℃~85℃ | |
| Storage Temperature | -40℃~85℃ | |
| Reliability | Telcordia GR-1221, Telcordia GR-468, Telcordia GR-1435 | |
