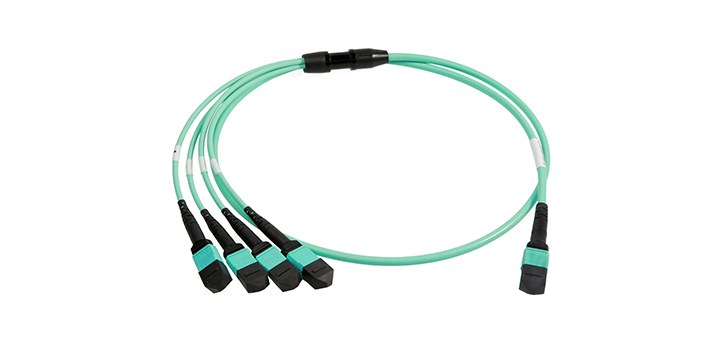

MTP/MPO Harness Assemblies are designed for high density application which offers excellent benefits in terms on-site installation time and space saving. These plug and play solutions uses micro core cable to maximize bend radius and minimize cable weight and size.
Data Centre Infrastructure
Storage Area Network-Fiber Channel
Emerging 40 & 100Gps Protocols
Connect with trunk cable on one end, with equipment port on the other end
Connect with transfer module on one end, with equipment port on the other end
100% Pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and network, reduce installation time
Support 40G and 100G network applications
Flammability: LSZH, OFNR, OFNP available
Support up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

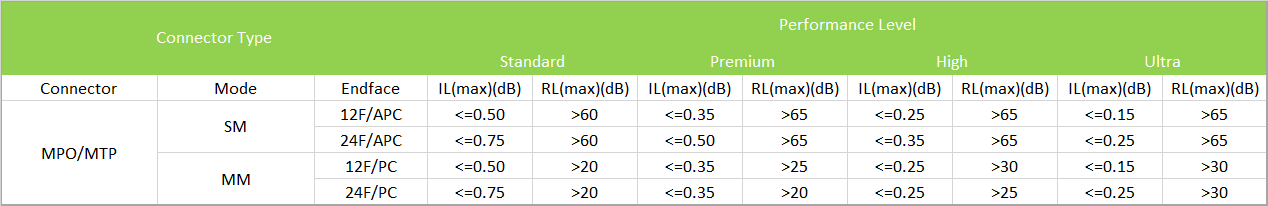

Optical Performance
Note：
1. Test wavelength:SM@1310/1550nm,OM1 OM2@850/1300nm,OM3 OM4 OM5@850nm
2. Test method:compliant with IEC 61300-3-4 insertion B;
3. Standard conformance:GR-1435

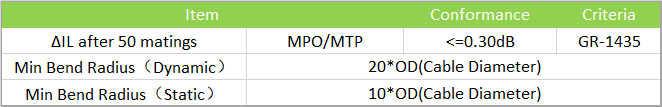

Mechanical Properties
Environment Conditions
