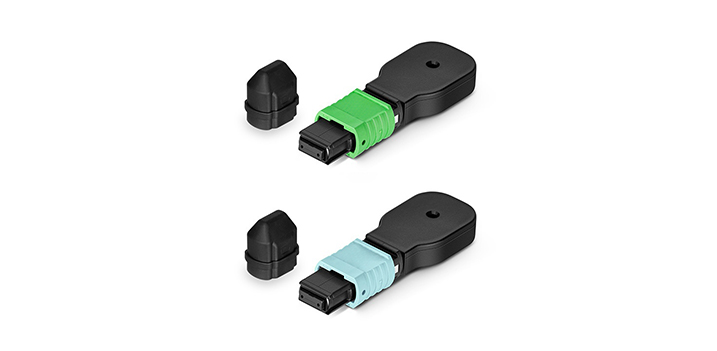

Loopbacks for MT interconnect applications are driven by both network systems-solutions providers and the optical-device community that design and make transceivers or active components. Loopbacks are used primarily as a means to test optical links in networks or devices by “looping back” the connections from the TX (transmit) pairs to the RX (receive) pairs. By doing this, a complete optical link is formed, allowing the optical performance evaluation of a discrete component or a complete link in a network path covering one or more interfaces.
System Loop Test
Equipment Loop Test
Network Diagnosis And Testing
100% Pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and network, reduce installation time
Support 40G and 100G network applications
Body color：Aqua，Blue
SM(G657.B3)，MM（OM3、OM4）
12 or 24 Fibre Ferrule MPO/MTP®
Female and Male MPO/MTP option of Connectors
MPO/MTP® Interface - MPO/MTP® components feature superior optical and mechanical properties

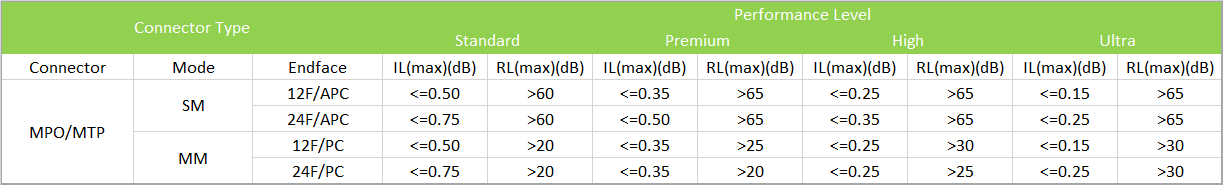

Optical Performance
Note：
1. Test wavelength:SM@1310/1550nm,OM3 OM4 OM5@850nm
2. Test method:compliant with IEC 61280-4-1 Annex A for MM and IEC 61280-4-2 Annex A for SM Unidirectional method ,attenuation need to calculate twice (IL of assembly)
3. Standard conformance:GR-1435

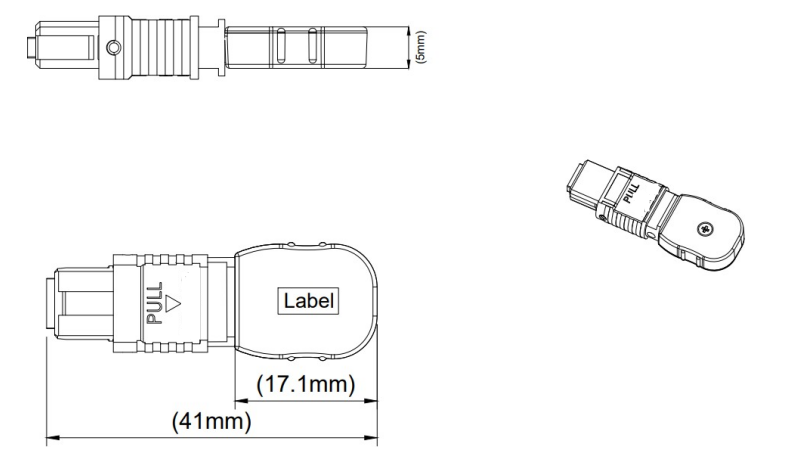

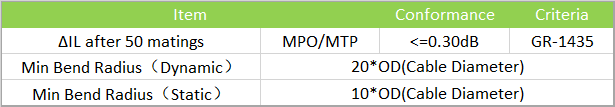

Mechanical Properties
Environment Conditions
