8/12F OM3/4 MTP Patch Cord

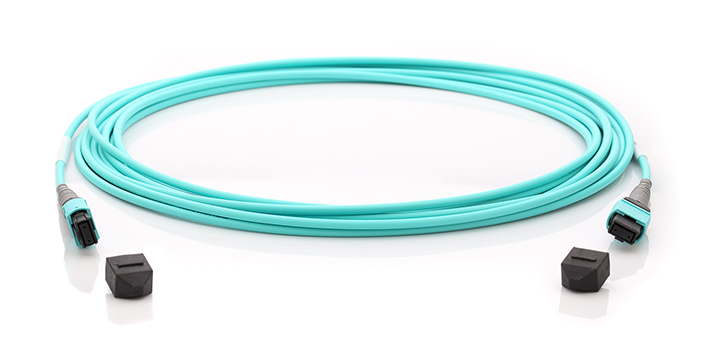

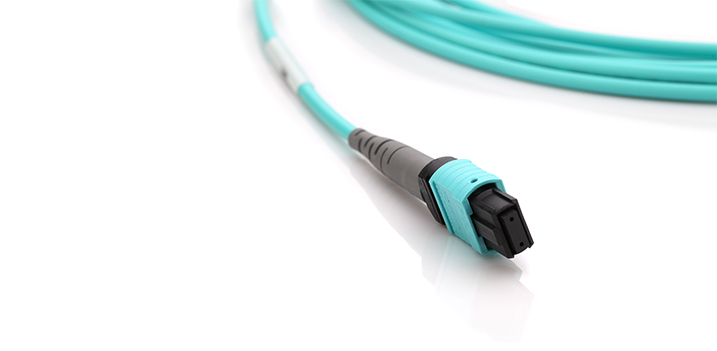

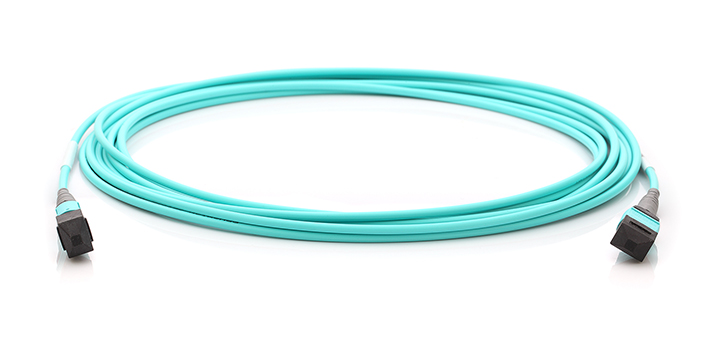

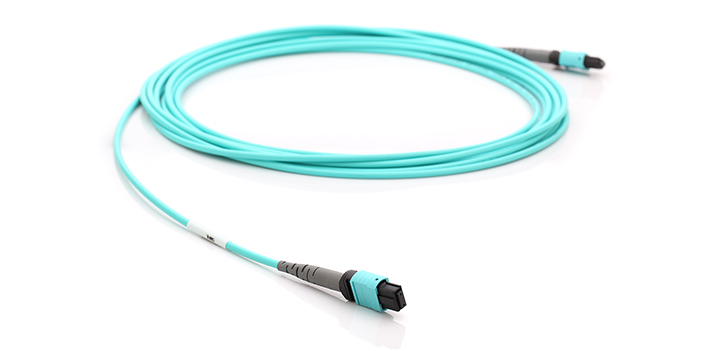

OM3/4 MTP Patch Cord

Multi-mode Fiber Products

Feature
  • 100% pre-terminated and tested in factory to ensure the performance

  • Rapid configuration and networking, reduce installation time

  • Optical fiber type: OM3, OM4, OM5

  • Cable color: aqua(OM3 and OM4), green(OM5)

  • Flammability: LSZH, OFN, OFNR available

  • Fibers:  8F, 12F, 24F;

  • Side A:  8, 12, 24 MTP/MPO(M or F);

  • Side B:  8, 12, 24 MTP/MPO(M or F);

  • Customized products are available

Network
  • Supports 40G, 100G Ethernet network applications


pc om.jpg

Application
  • MDA, HAD, EDA connection in data center and carrier central office

Installation Location
  • In the rack and cabinet

  • Between the racks and cabinets

Order Information
  • EPC12M12M012M3LZxxxxFSB

Technical Specification

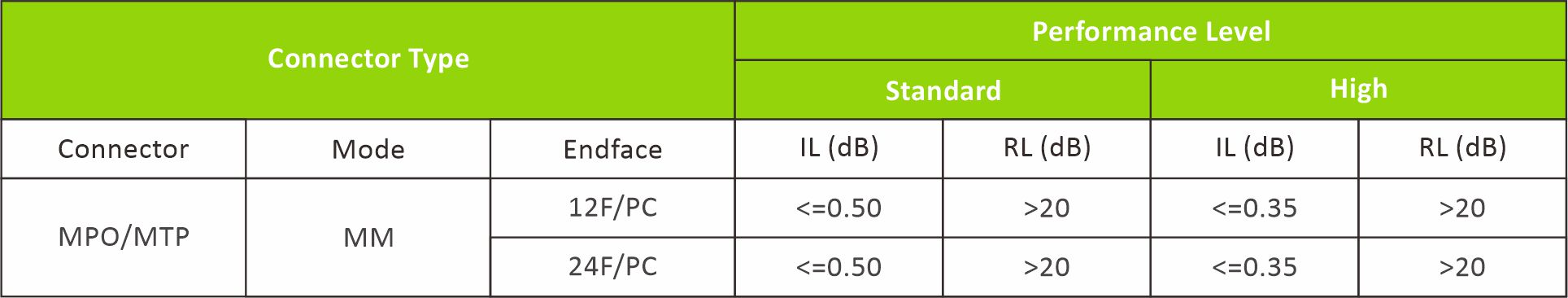

Optical Performance




Note:

1.Test wavelength:  MM@850/1300nm;

2.Test method: compliant with IEC 61300-3-4 method B;

3.Standard conformance: GR-1435.

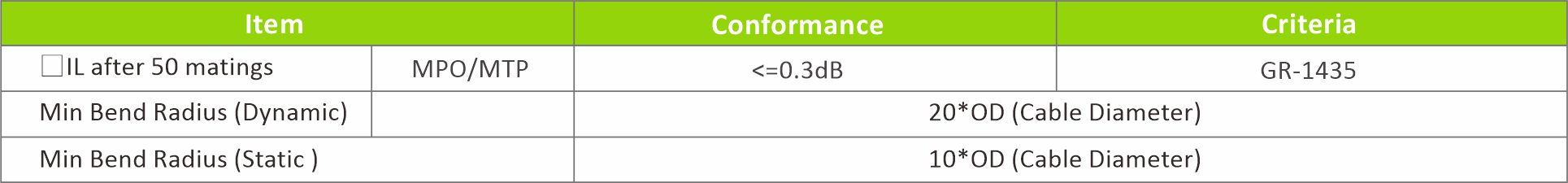

Mechanical Properties

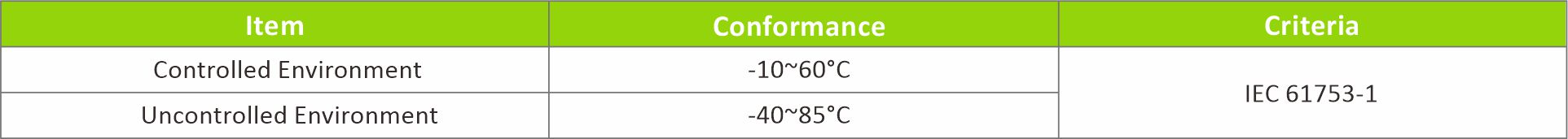

Environment Conditions
