AOC Subassembly

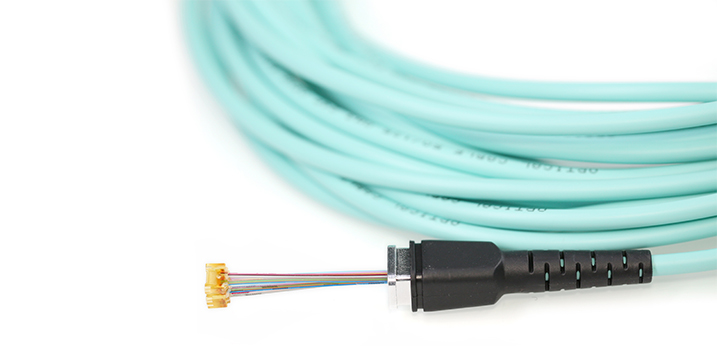

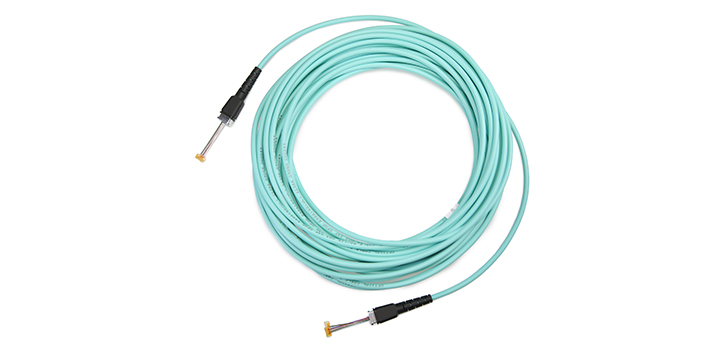

Quad Jumper-Quad Jumper
AOC Subassembly
400G AOC
Application
400G AOC
Installation Location
Data Center
Feature
Fiber type: OM2, OM3, OM4 or customized.
Ferrule can be customized to be suitable with lens.
Metal stopper can be customized to be suitable with module.
Laser cleaving 0° or 8° angle on fiber end-face for coupling.
Technical Specification
| Items | Parameters | |
| Channel Count | 16ch or Customized | |
| Ferrule Type | Customized Jumper | |
| Bare Fiber Length Tolerance | ±0.2mm | |
| Cable Diameter | 3.0mm, 3.6mm, 3.8mm or Customized | |
| Fiber type | OM3 or Customized | |
| Ferrule Material | PEI | |
| Laser Cleaving Angle | 0°±1°, 8°±1° or Customized | |
| Laser Cleaving Length Tolerance | 150±10um,250±10um,420±10um or Customized | |
| Working Temperature | -40℃~85℃ | |
| Storage Temperature | -40℃~85℃ | |
| Reliability | Telcordia GR-1221, Telcordia GR-468, Telcordia GR-1435 | |
