MMSR

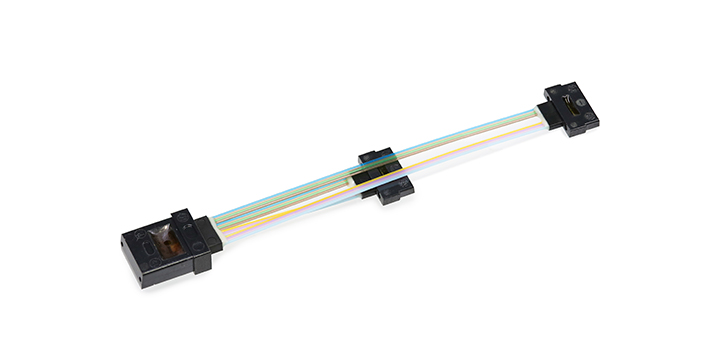

MT-Dual Mini MT
MM Optical Subassembly
400G SR8 Transceiver
Feature
Fiber type: OM2, OM3, OM4 or customized.
Ferrule can be customized to be suitable with lens.
Application
200G SR8 transceiver, 400G SR8 transceiver.
Installation Location
Data center
Technical Specification
| Items | Parameters | |
| Channel Count | 16ch or Customized | |
| Ferrule Type | Mini MT or Customized Jumper | |
| Fiber Length Tolerance | ±0.2mm | |
| Fiber type | OM3 or Customized | |
| Ferrule Material | PPS or PEI | |
| Polishing Angle | 8°±0.5° or Customized | |
| Mini MT Insertion Loss(dB) | ≤0.5dB | |
| MT Insertion Loss(dB) | ≤0.35dB or ≤0.5dB | |
| Working Temperature | -40℃~85℃ | |
| Storage Temperature | -40℃~85℃ | |
| Reliability | Telcordia GR-1221, Telcordia GR-468, Telcordia GR-1435 | |
